Personalizing radiotherapy with RSI, GARD, and RxRSI with bulk RNA data
A step-by-step tutorial on computing genome-based radiosensitivity biomarkers (RSI, GARD, RxRSI) from public bulk RNA-seq data, with survival modelling and personalized dose estimation
Purpose of this tutorial
Radiotherapy is key for cancer treatment, yet two patients receiving the same prescribed physical dose can have different outcomes. Standard prescribing is largely empirical: a dose schedule is chosen for a disease site and applied uniformly, ignoring the fact that tumors differ in their intrinsic radiosensitivity. That radiosensitivity turns out to be readable from a tumor’s gene expression profile, and a small family of biomarkers lets us turn it into a number we can act on.
The full script (tutorial.py), data, and figures live in the supporting repository, Rafael-Silva-Oliveira/radiosensitivity-biomarker. To avoid the tutorial from being too extensive, some code (such as plotting functions) will be present only in the tutorial.py, so feel free to check that out to see how a plot was constructed
flowchart LR
subgraph INPUT["<b>Input</b>"]
A["Bulk RNA-seq\n(raw counts)\n+ treatment params\n(n fractions, dose/fx)"]
end
subgraph PRE["<b>1. Pre-processing</b>"]
direction TB
C1["CPM normalize"]
C2["log1p transform"]
C3["Per-sample\ngene ranking"]
C1 --> C2 --> C3
end
subgraph RSI["<b>2. RSI</b>"]
direction TB
R1["10-gene\nweighted rank sum"]
R2["RSI in [0, 1]\n<i>low = radiosensitive</i>"]
R1 --> R2
end
subgraph GARD["<b>3. GARD</b>"]
direction TB
G1["RSI → α\n(LQ model @ 2 Gy)"]
G2["GARD = n·d(α+βd)\n<i>biological effect delivered</i>"]
G1 --> G2
end
subgraph SURV["<b>4. Survival</b>"]
direction TB
S1["Dichotomize\n(median / maxstat)"]
S2["Cox PH models"]
S3["Kaplan–Meier"]
S1 --> S2 --> S3
end
subgraph RX["<b>5. RxRSI</b>"]
direction TB
X1["Target GARDₜ\n(cutpoint)"]
X2["RxRSI = dose to\nreach GARDₜ"]
X3["Under / adequate /\nover-dosed"]
X1 --> X2 --> X3
end
subgraph OUT["<b>Output</b>"]
F["Per-patient\nradiosensitivity profile"]
end
A --> PRE --> RSI --> GARD
GARD --> SURV --> RX --> F
style INPUT fill:#f0f0f0,stroke:#333
style PRE fill:#e8ecf4,stroke:#2d4d7d
style RSI fill:#e8f4e8,stroke:#2d7d2d
style GARD fill:#f4e8f4,stroke:#7d2d7d
style SURV fill:#f4ece8,stroke:#7d4d2d
style RX fill:#f4e8e8,stroke:#7d2d2d
style OUT fill:#f0f0f0,stroke:#333

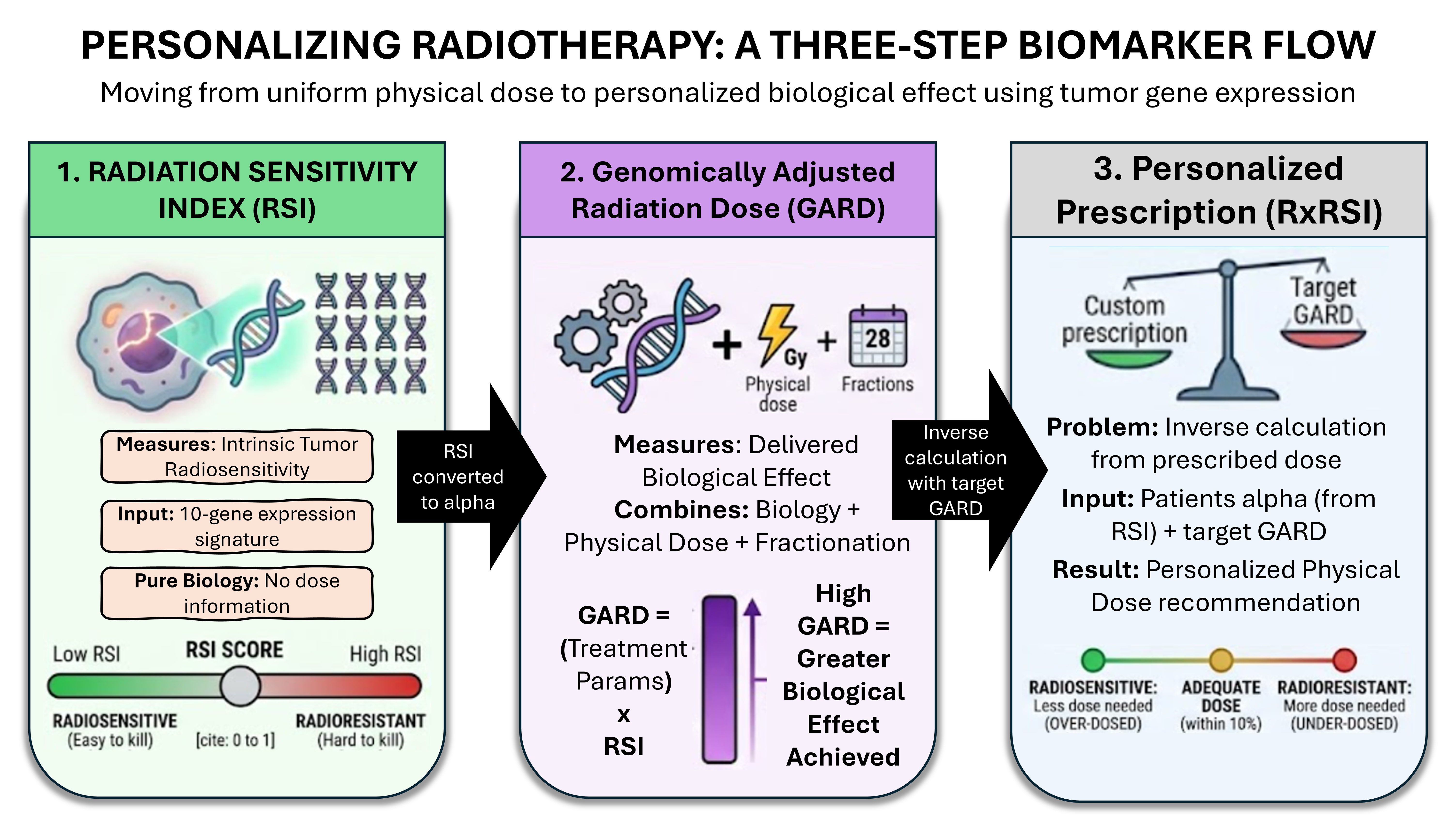

In this tutorial I walk through the complete pipeline for three related clinical biomarkers:
- RSI (Radiation Sensitivity Index) — a 10-gene expression score that quantifies a tumor’s intrinsic radiosensitivity. It is pure biology: no dose information enters it.
- GARD (Genomically Adjusted Radiation Dose) — a patient-specific number that combines RSI with the actual treatment parameters (number of fractions and dose per fraction) through the linear-quadratic (LQ) model. It expresses the biological effect a given physical dose achieves in a given tumor.
- RxRSI — the inverse problem: given a clinically meaningful GARD target, what total physical dose would this particular patient need to reach it?
Check the supporting references to learn more about radiosensitivity
I will apply the pipeline to a publicly available rectal cancer dataset (GSE190826, n = 105 pre-treatment biopsies), which offers raw RNA-seq counts, a protocol-uniform chemoradiotherapy schedule (50.4 Gy / 28 fractions = 1.8 Gy per fraction), disease-free survival, and pathological-response data. Because every patient received the same physical dose, all of the spread in GARD comes from tumor biology. I also need to flag (and will do thorought the tutorial) that 1.8 Gy/fraction sits just outside the 2 Gy regime in which RSI and GARD were calibrated, and what that means for interpretation.
The whole point of these biomarkers is to move radiotherapy from prescribing a physical dose (Gy delivered to the target) to prescribing a biological effect (cell kill achieved in this tumor). Two tumors given 50 Gy do not receive the same biological dose; RSI/GARD make that difference quantitative.
Background: radiosensitivity as a biomarker
Radiation Sensitivity Index (RSI)
RSI was derived from a panel of 48 human cancer cell lines whose radiosensitivity had been measured experimentally as SF2 — the surviving fraction of cells after a single 2 Gy dose
The output is RSI:
Lower RSI = more radiosensitive tumor (radiation kills it efficiently). Higher RSI = more radioresistant tumor (it survives a given dose). This direction is the single most important thing to keep straight in this entire tutorial. everything downstream (GARD, RxRSI, survival) flows from it. A radiosensitive (low-RSI) tumor reaches a high biological effect at a modest physical dose, whereas a radioresistant (high-RSI) tumor needs far more dose to achieve the same effect.
Crucially, RSI is computed from within-sample ranks, not absolute expression. This makes it somewhat robust to platform and normalization differences: as long as a sample’s genes can be ranked against each other, RSI is comparable across cohorts and sequencing technologies.
Genomically Adjusted Radiation Dose (GARD)
RSI reflects biology in isolation; on its own it does not know how much radiation a patient actually received. GARD closes that gap by feeding RSI into the linear-quadratic (LQ) model of cell survival together with the delivered fractionation schedule
Holding $\beta$ fixed is reasonable for standard once-daily fractionation, but it assumes each fraction acts independently, i.e. that sub-lethal damage is fully repaired before the next dose arrives. For markedly different schedules, $\beta$ would ideally be recalibrated (e.g. from cell-line survival data).
GARD can underestimate the biological effect of hyperfractionated (twice-daily) schedules. When two fractions are given on the same day, the interfraction interval may be too short for complete sub-lethal repair, so the morning and afternoon doses interact. The tissue then behaves as if the effective dose per fraction were larger than the nominal $d$ , somewhere between $d$ (if the two were fully independent) and $2d$ (if they acted as a single combined dose). Because GARD evaluates the LQ model at the nominal $d$ and a fixed $\beta$, it ignores this extra quadratic damage and therefore under-counts the true biological dose delivered. In short: the more a schedule departs from the once-daily, ~2 Gy/fraction regime in which the LQ parameters were calibrated, the more cautiously the absolute GARD/RxRSI value should be read.
The resulting GARD is a continuous score that represents the total biological therapeutic effect the prescribed radiotherapy delivers to that specific tumor. A higher GARD means a greater biological effect achieved. Because GARD folds in the real dose and number of fractions, the same RSI gives a higher GARD when more dose is delivered, which is exactly what makes it clinically actionable: escalating the physical dose shifts a patient’s GARD upward.
Mechanistically, GARD takes the patient’s individual RSI, converts it into a biological radiosensitivity parameter ($\alpha$), and inserts it into the LQ model alongside the actual radiation dose received. This moves away from the assumption of uniform efficacy based purely on physical dose, and instead directly quantifies the personalized biological effect delivered to an individual tumor.
In validation cohorts, patients with high GARD consistently show better outcomes (better local control, longer metastasis-free and overall survival), and across a pooled pan-cancer analysis of >1,600 patients GARD outperformed physical dose at predicting recurrence and survival
Personalized dose prescription (RxRSI)
If GARD tells us the effect a prescribed dose achieves, RxRSI answers the practical inverse: what total physical dose would this patient need to reach a clinically meaningful GARD? We pick a target GARD ($\mathrm{GARD}_T$), usually the population cutpoint that separates good- from poor-outcome groups, and solve the GARD relationship for the dose that gets a given patient there.
Comparing each patient’s RxRSI to the dose they actually received reveals three groups:
- Under-dosed — their RxRSI is above the delivered dose; standard-of-care under-treats their (radioresistant) tumor.
- Adequately dosed — RxRSI sits within a tolerance window (here ±10 %) of the delivered dose.
- Over-dosed — their RxRSI is below the delivered dose; a radiosensitive tumor was treated more aggressively than its biology required, incurring needless toxicity.
This is precisely the lens that retrospectively explained the failure of uniform dose escalation in trials like RTOG 0617: escalating everyone from 60 to 74 Gy helped only the minority of “intermediate” patients whose RxRSI fell in that window, while over-treating the already-radiosensitive and still under-treating the truly radioresistant
A note on standard fractionation
RSI and the GARD framework were derived and calibrated at standard fractionation (2 Gy per fraction). This matters for interpretation. The authors of the pan-cancer GARD validation were explicit about the boundary of the model:
“Additionally, because GARD is currently limited to understanding dosing near standard fractionation, we are unable to confidently analyse or model some of the newer hypofractionated or hyperfractionated regimens.”
This matters directly for this tutorial. The standard derivation calibrates $\alpha$ at 2 Gy, but the GSE190826 cohort was treated at 1.8 Gy per fraction (50.4 Gy / 28 fx). So we are already, if only mildly, extrapolating the LQ model outside the 2 Gy regime in which the parameters were estimated. The same applies to genuinely non-standard schedules such as hypofractionated SBRT or twice-daily hyperfractionation, like mentioned above. Strictly, $\beta$ should be re-estimated for the delivered fractionation rather than reused at its 2 Gy value, and the resulting GARD/RxRSI numbers should be read as an ordinal ranking of radiosensitivity rather than as literal deliverable prescriptions. We compute $\alpha$ at the prescribed 2 Gy reference (as the model dictates) and evaluate GARD at the delivered $d = 1.8$ Gy, keeping this caveat in view throughout.
⚠️ Fractionation caveat. Keep this in the back of your mind whenever you reuse this code on your own data. If the cohort was not treated at ~2 Gy/fraction, RSI’s 2 Gy calibration and the fixed $\beta$ no longer strictly hold, and the LQ assumption of fully independent fractions can also break down (e.g. incomplete sub-lethal damage repair between twice-daily fractions). The relative ordering of patients tends to survive these biases, but the absolute RxRSI doses, especially in the radioresistant tail, should be interpreted with caution.
The formulas
There are only three equations to keep track of, and they chain together: RSI feeds into $\alpha$, $\alpha$ feeds into GARD, and GARD (inverted) gives RxRSI. I present them exactly as in the source papers
RSI
RSI is a weighted sum of within-sample expression ranks for the 10 signature genes:
\[\mathrm{RSI} = \sum_{i=1}^{10} k_i \cdot \mathrm{rank}(g_i)\]where $k_i$ is the signed coefficient for gene $g_i$ and $\mathrm{rank}(g_i)$ is that gene’s expression rank within the sample. The 10 genes and their coefficients (from the original Scott 2017 model) are:
| Gene | Coefficient $k_i$ | Effect of high expression on RSI |
|---|---|---|
| AR | −0.0098009 | ↓ RSI → ↑ sensitivity |
| JUN | +0.0128283 | ↑ RSI → ↑ resistance |
| STAT1 | +0.0254552 | ↑ RSI → ↑ resistance |
| PRKCB | −0.0017589 | ↓ RSI → ↑ sensitivity |
| RELA | −0.0038171 | ↓ RSI → ↑ sensitivity |
| ABL1 | +0.1070213 | ↑ RSI → ↑ resistance |
| SUMO1 | −0.0002509 | ↓ RSI → ↑ sensitivity |
| PAK2 | −0.0092431 | ↓ RSI → ↑ sensitivity |
| HDAC1 | −0.0204469 | ↓ RSI → ↑ sensitivity |
| IRF1 | −0.0441683 | ↓ RSI → ↑ sensitivity |
Remember the direction: low RSI = radiosensitive, high RSI = radioresistant. Because each gene’s signed coefficient multiplies its (positive) within-sample rank, the sign of the coefficient decides which way high expression pushes RSI. Negative-coefficient genes (AR, PRKCB, RELA, SUMO1, PAK2, HDAC1, IRF1) push RSI down when highly expressed — toward sensitivity. Positive-coefficient genes (JUN, STAT1, ABL1) push it up — toward resistance.
From RSI to alpha and GARD
To bridge the genomic score and radiobiology, RSI is first converted into the patient-specific linear LQ parameter $\alpha$ using a logarithmic transform, pre-calibrated at 2 Gy (the SF2 assay dose):
\[\alpha = \frac{\ln \mathrm{RSI} + \beta n d^{2}}{-nd}\]where $\beta = 0.05\ \mathrm{Gy^{-2}}$ is held fixed, $n$ is the number of fractions, and $d$ is the dose per fraction. GARD then quantifies the personalized biological effect delivered:
\[\mathrm{GARD} = n \cdot d\,(\alpha + \beta d)\]Because $\alpha$ is derived through a natural log, it grows toward infinity as RSI approaches 0 (an extremely radiosensitive tumor), which can produce extreme GARD values. Following Scott et al.
RxRSI
RxRSI inverts the relationship: it is the physical dose required to reach a chosen target GARD ($\mathrm{GARD}_T$) for a given patient:
\[\mathrm{RxRSI} = \frac{\mathrm{GARD}_T}{\alpha_g + \beta d}\]where $\alpha_g$ is the patient’s own $\alpha$ (from the equation above) and $\beta = 0.05\ \mathrm{Gy^{-2}}$. $\mathrm{GARD}_T$ is the population-level GARD cutpoint that separates the better- from worse-outcome group — in this tutorial I use the maxstat cutpoint. A radioresistant tumor (small $\alpha_g$) needs a much larger dose to reach the same $\mathrm{GARD}_T$, which is exactly the exponential blow-up you will see in the dose-vs-RSI figure later.
The dataset and patient cohort
Why GSE190826
We use the GSE190826 rectal cancer cohort (Nicolas et al.)
- N = 105 pre-treatment (pre-CRT) rectal cancer biopsies. The dataset also contains 12 post-CRT samples, which we exclude because RSI must be computed on the baseline tumor.
- RNA-seq —
featureCountsraw counts (Ensembl gene IDs) deposited as a per-sample RAW tar. - Treatment: neoadjuvant long-course chemoradiotherapy, 50.4 Gy / 28 fractions = 1.8 Gy / fraction, with concurrent fluoropyrimidine-based chemotherapy (5-FU, some with oxaliplatin or capecitabine).
- Endpoints: disease-free survival (DFS, months + event) and pathological response (pCR vs non-pCR).
Note on single-arm cohorts. Ideally one would compare RSI/GARD across patients who received different radiotherapy doses (e.g. a 60 Gy vs 70 Gy contrast) to demonstrate GARD’s predictive value — that it identifies who benefits from escalation. I could not find an easily accessible RNA-seq cohort with per-patient fractions and ≥ 2 RT dose arms exists; GSE190826 is a strong public option: confirmed 1.8 Gy/fraction fractionation, reasonable sample size, and DFS data. We therefore use it to demonstrate GARD’s prognostic association with outcome and stratify by pathological response (pCR vs non-pCR) in place of a dose-arm comparison.
Clinical characteristics
The cohort is uniform on radiotherapy (everyone receives 50.4 Gy / 28 fx) but varies in concurrent chemotherapy and, of course, in tumor biology:
| Characteristic | Value |
|---|---|
| Samples (pre-CRT) | 105 |
| With DFS survival data | 87 |
| Pathological response | 26 pCR / 79 non-pCR |
| Concurrent chemo | 50.4 Gy + 5-FU (n=81); + 5-FU/Ox (n=33); + capecitabine (n=3) |
| Radiotherapy | 50.4 Gy / 28 fx = 1.8 Gy/fx (uniform) |
| Endpoint | Disease-free survival (months) |
Repository structure
The layout is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
radiosensitivity-biomarker/
├── tutorial.py # full RSI -> GARD -> RxRSI pipeline (this tutorial)
├── requirements.txt # dependencies (GEOparse, lifelines, rnanorm, ...)
├── data/ # downloaded + cached (created on first run)
│ ├── references # Reference pdfs of the original papers
│ ├── GSE190826_RAW.tar # raw featureCounts files (downloaded from GEO)
│ ├── gse190826_counts.csv # parsed counts matrix (cache)
│ ├── gse190826_meta.csv # parsed clinical metadata (cache)
│ ├── results.csv # per-patient RSI / GARD / RxRSI / groups
│ └── gse190826_processed.h5ad
└── figures/ # all output plots

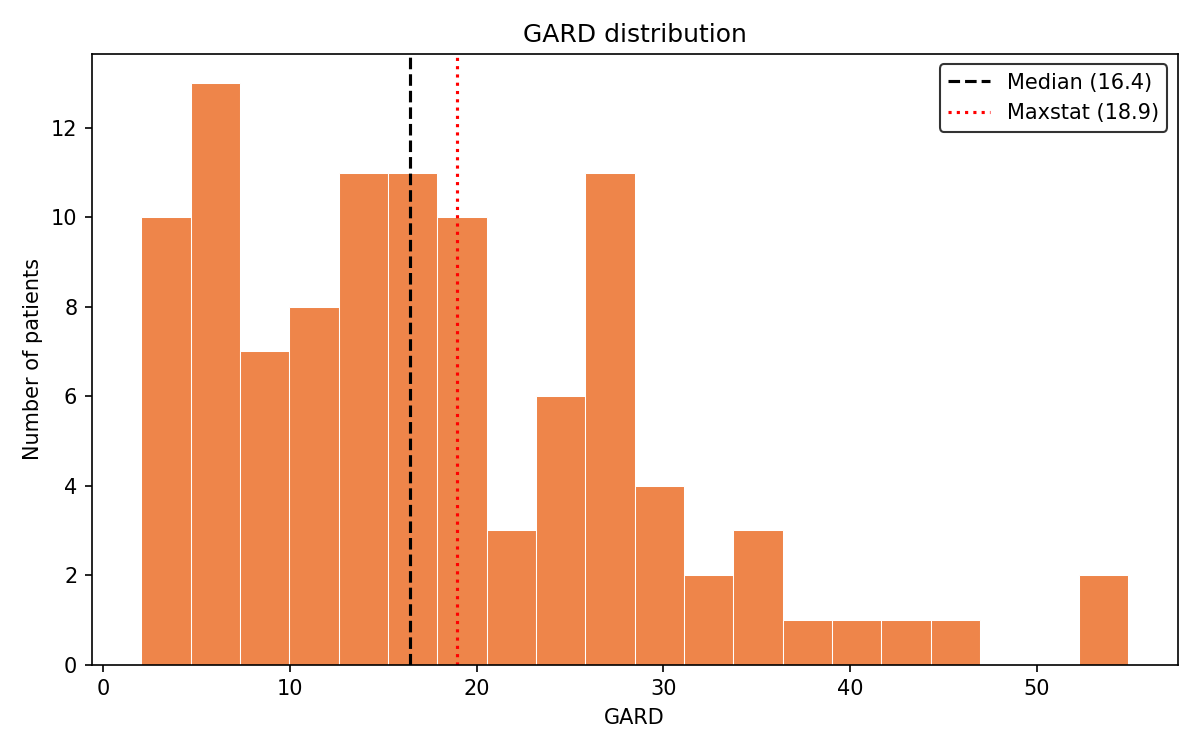

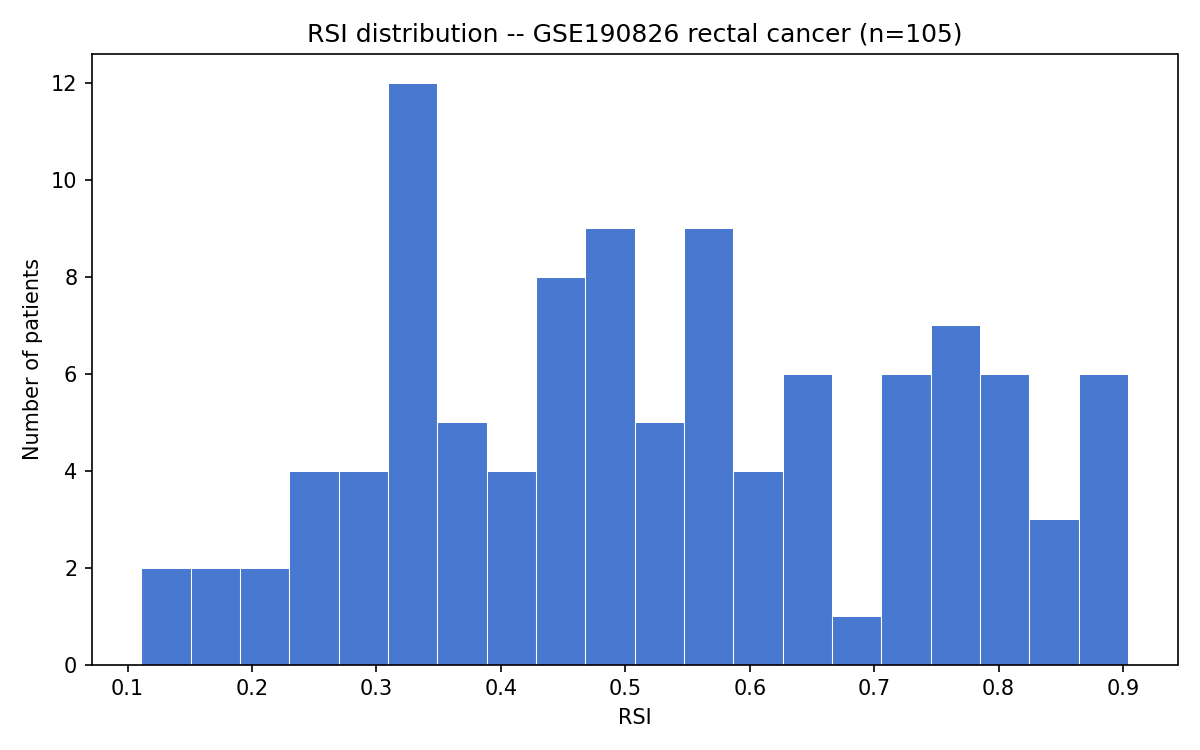

├── rsi_histogram.png
├── gard_histogram.png

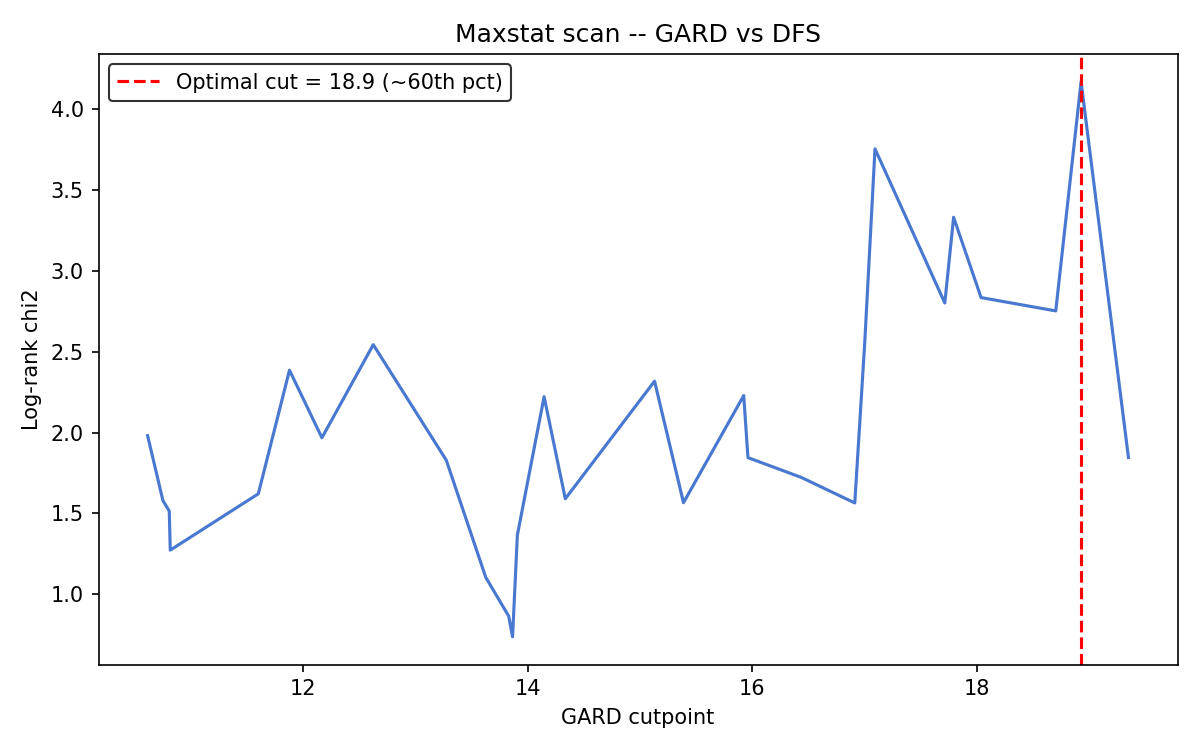

├── maxstat_scan.png

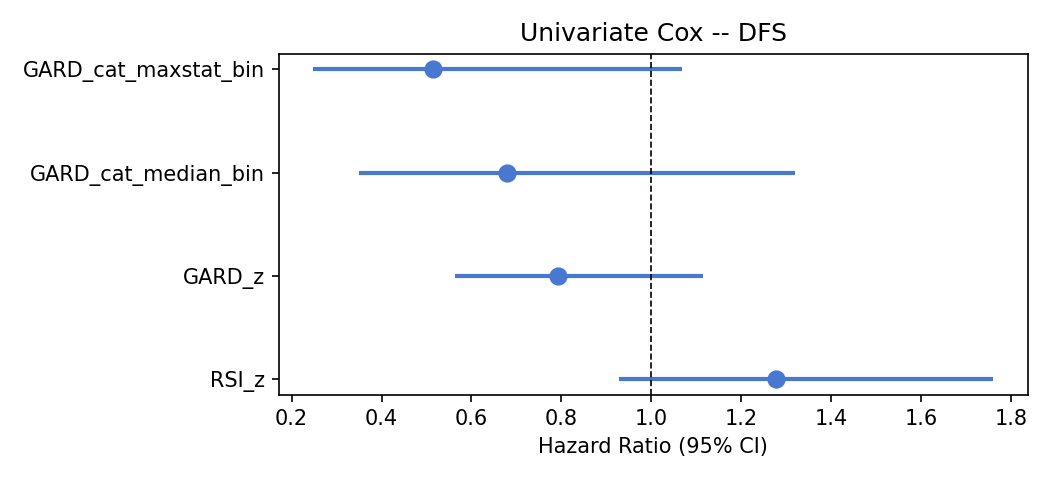

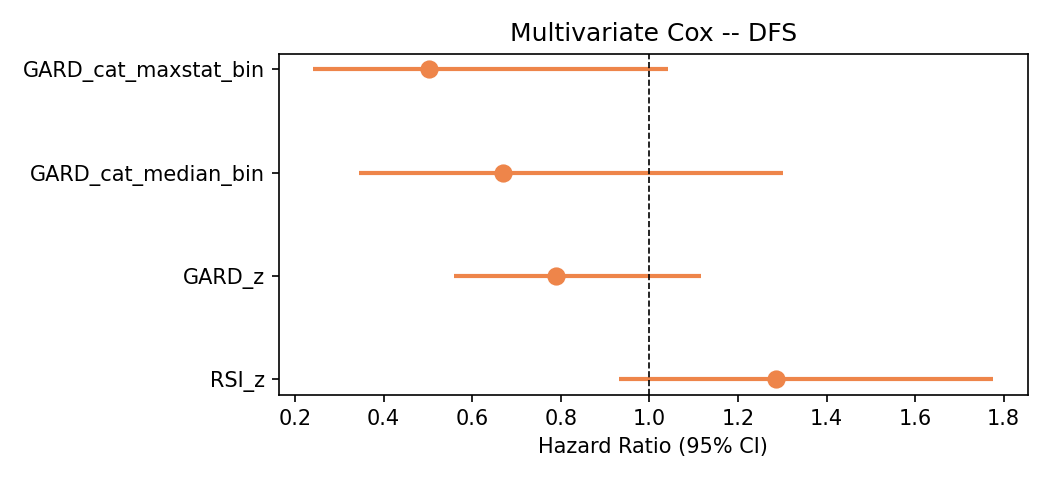

├── forest_univariate.png

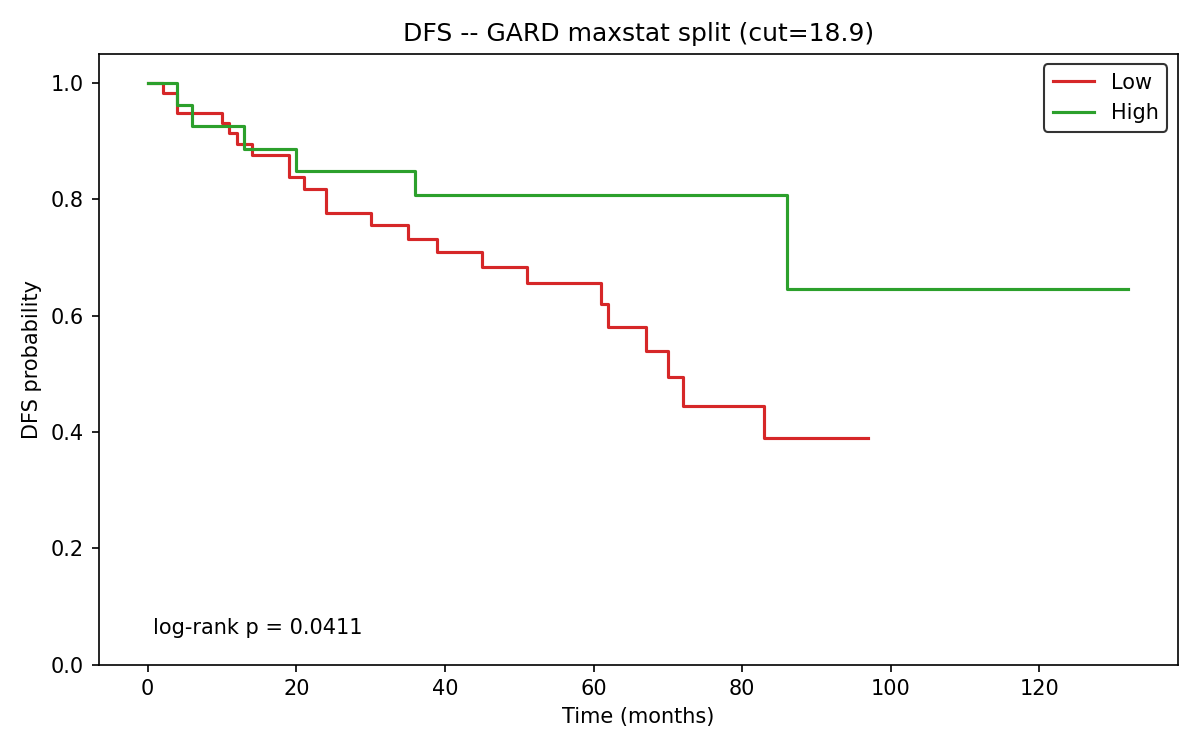

├── km_dfs_gard_maxstat.png

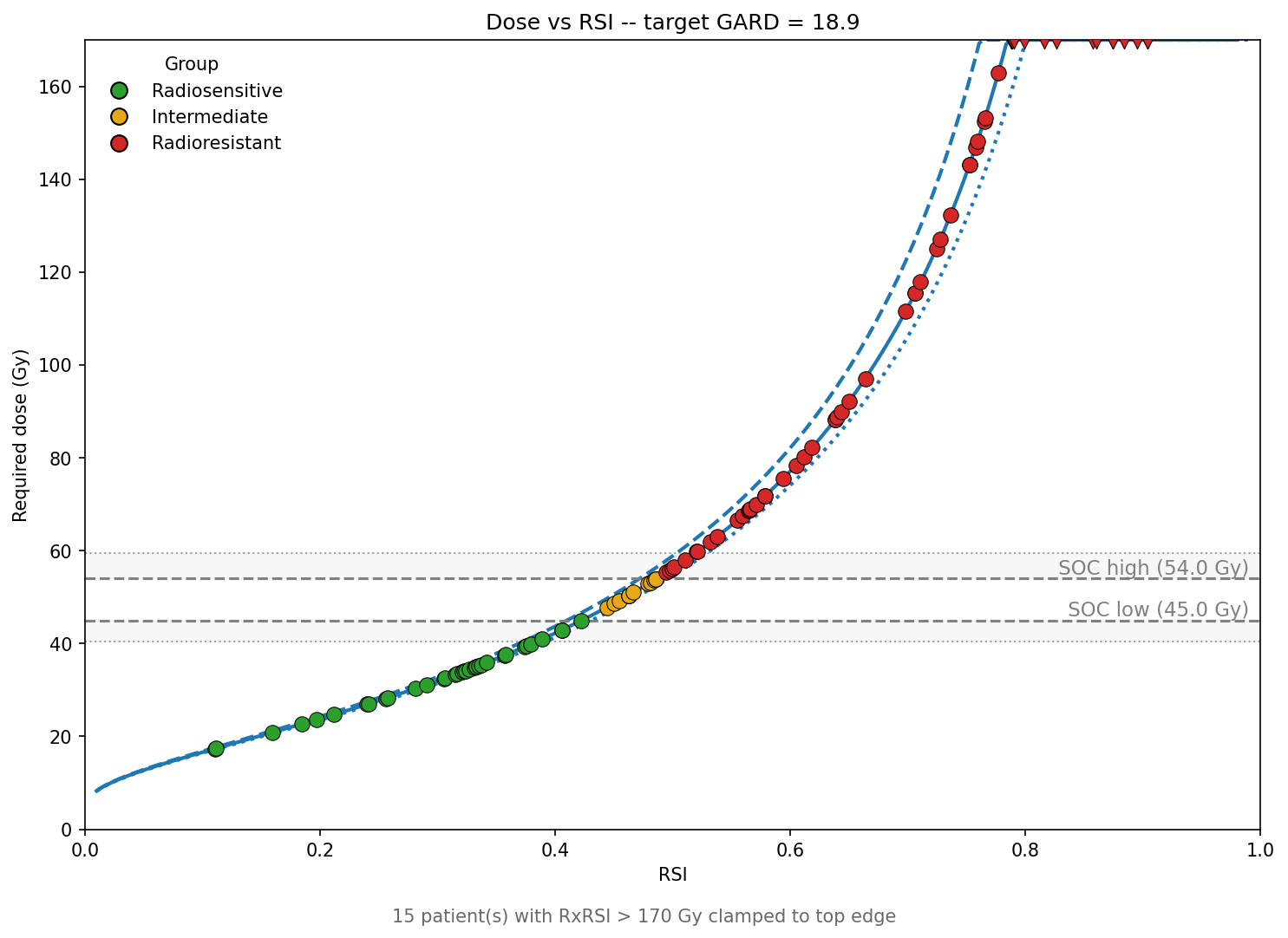

├── dose_vs_rsi_curves.png

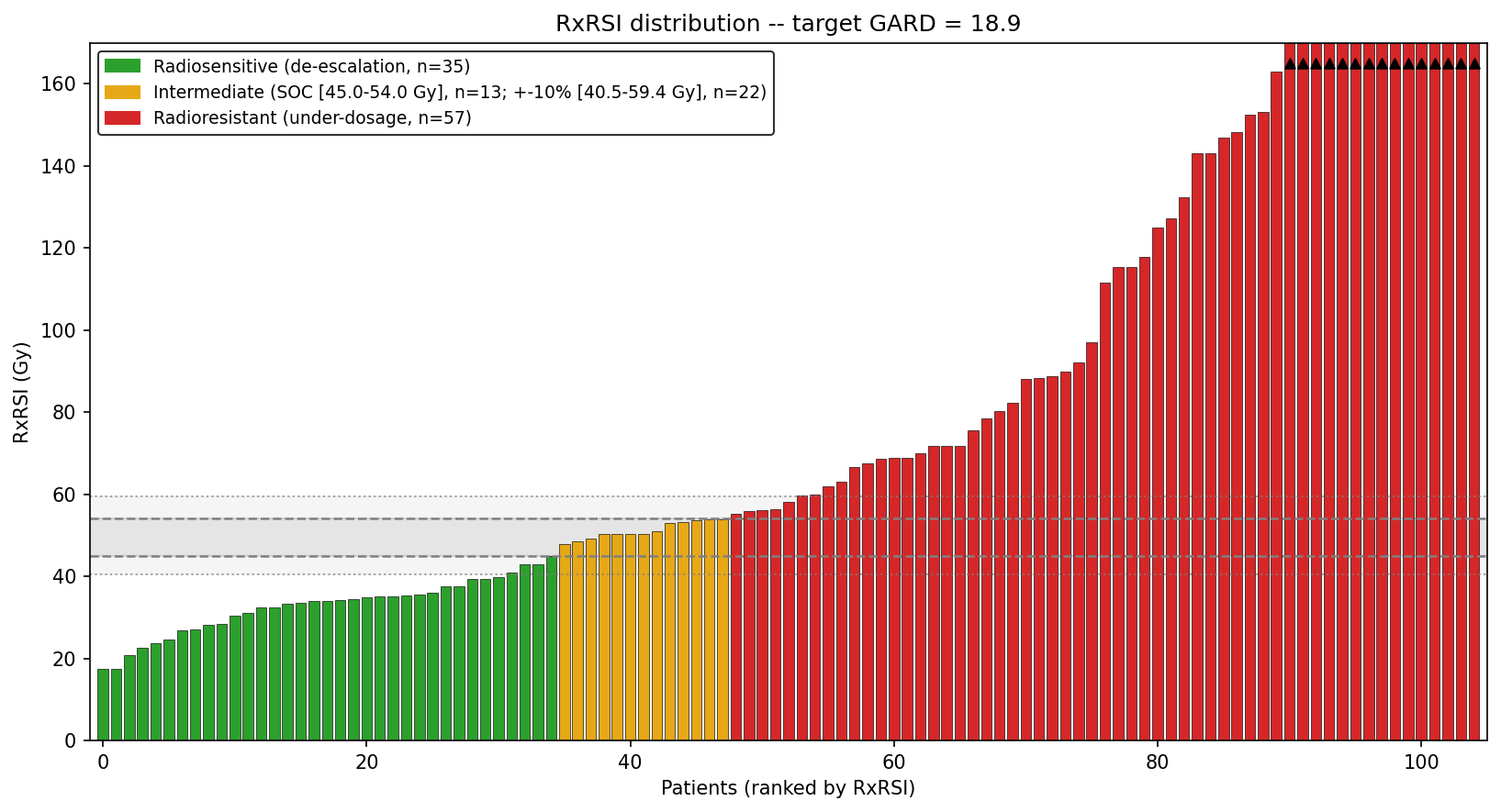

└── ... (RxRSI waterfall, spectrum, etc.)
Getting set up with uv
The fastest way to reproduce this tutorial is with uv, a single-binary Python package and environment manager. Clone the repo, create an isolated virtual environment, and install the pinned dependencies straight from requirements.txt:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# 1. Clone the supporting repository
git clone https://github.com/Rafael-Silva-Oliveira/radiosensitivity-biomarker.git
cd radiosensitivity-biomarker
# 2. Create a virtual environment (uv picks a compatible Python for you)
uv venv
# 3. Activate it
# .venv\Scripts\activate # Windows (PowerShell)
# 4. Install the dependencies into the venv
uv pip install -r requirements.txt
# 5. Run the full pipeline
python tutorial.py
The pipeline is organized as numbered cells (# %%) so you can step through it in VS Code or Jupyter. Constants (dose, fractions, $\beta$, the 10-gene coefficients) are defined once at the top:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
GEO_ID = "GSE190826"
RAW_TAR_URL = "https://ftp.ncbi.nlm.nih.gov/geo/series/GSE190nnn/GSE190826/suppl/GSE190826_RAW.tar"
N_FRACTIONS = 28 # 50.4 Gy / 28 fx = 1.8 Gy per fraction
TOTAL_DOSE = 50.4 # Gy
DOSE_PER_FX = TOTAL_DOSE / N_FRACTIONS # = 1.8 Gy
BETA = 0.05 # fixed LQ beta (Gy^-2), Scott 2017
D_ALPHA = 2.0 # SF2-assay reference dose for alpha derivation (Gy)
# Even though this study only has a 1 arm delivered dose, we will establish a upper and lower interval just to see how we could evaluate RxRSI in a multi-arm study, if that was the case.
SOC_LOW = 45.0 # Gy -- lower edge of rectal neoadjuvant SOC
SOC_HIGH = 54.0 # Gy -- upper edge
SOC_REF = 50.4 # Gy -- delivered to all patients in this cohort
# RSI 10-gene coefficients -- Check out the paper from Scott et al. 2017
RSI_COEFFS = {
"AR": -0.0098009,
"JUN": 0.0128283,
"STAT1": 0.0254552,
"PRKCB": -0.0017589,
"RELA": -0.0038171,
"ABL1": 0.1070213,
"SUMO1": -0.0002509,
"PAK2": -0.0092431,
"HDAC1": -0.0204469,
"IRF1": -0.0441683,
}
RSI_GENES = list(RSI_COEFFS.keys())
# GRCh38 Ensembl IDs for the 10 RSI genes (featureCounts files use Ensembl IDs). Since its not many genes, we can use something like https://www.syngoportal.org/convert to conver from Ensembl to HGNC symbols
RSI_ENSEMBL = {
"AR": "ENSG00000169083",
"JUN": "ENSG00000177606",
"STAT1": "ENSG00000115415",
"PRKCB": "ENSG00000166501",
"RELA": "ENSG00000173039",
"ABL1": "ENSG00000097007",
"SUMO1": "ENSG00000116030",
"PAK2": "ENSG00000180370",
"HDAC1": "ENSG00000116478",
"IRF1": "ENSG00000125347",
}
# Reverse map: Ensembl -> symbol
ENSEMBL_TO_SYMBOL = {v: k for k, v in RSI_ENSEMBL.items()}
RXRSI_COLORS = {
"Radiosensitive": "#2ca02c",
"Intermediate": "#E6A817",
"Radioresistant": "#d62728",
}
RXRSI_ORDER = ["Radiosensitive", "Intermediate", "Radioresistant"]
The GEO RAW files use Ensembl gene IDs, not symbols, so the script also keeps an
RSI_ENSEMBLmap (e.g.AR -> ENSG00000169083) and renames just those 10 columns back to HGNC symbols after parsing.
Building the expression matrix
Fetching the data
We download the GSE RAW tar and parse each per-sample featureCounts file. The clinical metadata (DFS, response, treatment) comes from the GEO soft file. Both are cached to CSV so re-runs are instant.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
import gzip, tarfile, urllib.request
from pathlib import Path
import GEOparse, anndata as ad
import numpy as np, pandas as pd
GEO_ID = "GSE190826"
RAW_TAR_URL = "https://ftp.ncbi.nlm.nih.gov/geo/series/GSE190nnn/GSE190826/suppl/GSE190826_RAW.tar"
DATA_DIR = Path("data"); DATA_DIR.mkdir(exist_ok=True)
counts_cache = DATA_DIR / "gse190826_counts.csv"
meta_cache = DATA_DIR / "gse190826_meta.csv"
if counts_cache.exists() and meta_cache.exists():
counts_df = pd.read_csv(counts_cache, index_col=0)
meta_df = pd.read_csv(meta_cache, index_col=0)
else:
tar_path = DATA_DIR / "GSE190826_RAW.tar"
if not tar_path.exists():
urllib.request.urlretrieve(RAW_TAR_URL, tar_path)
count_cols = {}
with tarfile.open(tar_path, "r") as tar:
for m in [m for m in tar.getmembers() if m.name.endswith(".gz")]:
gsm_id = m.name.split("_")[0]
with gzip.open(tar.extractfile(m)) as gz:
# featureCounts: Geneid Chr Start End Strand Length <count>
df = pd.read_csv(gz, sep="\t", comment="#")
gene_col, count_col = df.columns[0], df.columns[-1]
df[gene_col] = df[gene_col].str.split(".").str[0] # strip Ensembl version
count_cols[gsm_id] = df.set_index(gene_col)[count_col]
counts_df = pd.DataFrame(count_cols).T
counts_df.rename(columns=ENSEMBL_TO_SYMBOL, inplace=True) # 10 RSI genes -> symbols
gse = GEOparse.get_GEO(geo=GEO_ID, destdir=str(DATA_DIR), silent=True)
meta_rows = []
for gsm_name, gsm in gse.gsms.items():
row = {"sample_id": gsm_name}
for ch in gsm.metadata.get("characteristics_ch1", []):
if ":" in ch:
k, v = ch.split(":", 1)
row[k.strip().lower().replace(" ", "_")] = v.strip()
meta_rows.append(row)
meta_df = pd.DataFrame(meta_rows).set_index("sample_id")
counts_df.to_csv(counts_cache); meta_df.to_csv(meta_cache)
We then keep only the pre-CRT biopsies (RSI is a baseline measurement) and build an AnnData object, attaching the protocol-uniform dose to every patient:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# Keep only pre-CRT samples
pre_mask = meta_df["time"].str.strip().str.lower() == "pre-crt"
meta_df = meta_df[pre_mask]
shared = counts_df.index.intersection(meta_df.index)
counts_df = counts_df.loc[shared]
meta_df = meta_df.loc[shared]
# Numeric counts, drop all-zero genes
counts_df = counts_df.apply(pd.to_numeric, errors="coerce").fillna(0)
counts_df = counts_df.loc[:, counts_df.sum(axis=0) > 0]
adata = ad.AnnData(counts_df)
adata.obs = meta_df.copy()
adata.obs.rename(columns={
"disease_free_survival_time_(months)": "dfs_months",
"disease_free_survival_event": "dfs_event",
"treatment_response_pcr_vs._non-pcr": "response",
}, inplace=True)
adata.obs["dfs_months"] = pd.to_numeric(adata.obs["dfs_months"], errors="coerce")
adata.obs["dfs_event"] = pd.to_numeric(adata.obs["dfs_event"], errors="coerce")
adata.obs["total_dose"] = TOTAL_DOSE
adata.obs["n_fractions"] = N_FRACTIONS
adata.obs["dose_per_fx"] = DOSE_PER_FX
adata.layers["raw_counts"] = adata.X.copy()
This leaves us with 105 pre-CRT samples, of which 87 have DFS survival data (26 pCR / 79 non-pCR).
Normalization
RSI uses within-sample ranks, so the only normalization that matters is bringing all samples onto the same library-size scale. We convert raw counts to CPM (counts per million) with rnanorm, then log1p-transform. No gene-length correction is needed because ranking is invariant to it once samples are on a common scale.
1
2
3
4
5
6
from rnanorm import CPM
raw = adata.layers["raw_counts"].copy()
cpm = CPM().fit_transform(raw)
adata.layers["cpm"] = cpm.copy()
adata.layers["log_cpm"] = np.log1p(cpm)
At this point the object carries the full cohort, its clinical annotations, and the three expression representations side by side. Inspecting adata gives:
AnnData object with n_obs × n_vars = 105 × 55460
obs: 'time', 'cancer_type', 'response', 'treatment', 'dfs_event', 'dfs_months', 'total_dose', 'n_fractions', 'dose_per_fx'
layers: 'raw_counts', 'cpm', 'log_cpm'Concretely, the pieces of that object map to:
| Slot | Field | Meaning |
|---|---|---|
n_obs | 105 | pre-CRT patient samples |
n_vars | 55 460 | genes (Ensembl IDs) after dropping all-zero rows |
obs | time | biopsy timing (pre-CRT for all retained samples) |
obs | cancer_type | tumor type (rectal adenocarcinoma) |
obs | response | pathological response — pCR vs non-pCR |
obs | treatment | neoadjuvant chemoradiotherapy regimen |
obs | dfs_event | disease-free survival event flag (0/1) |
obs | dfs_months | disease-free survival time in months |
obs | total_dose | prescribed total dose (50.4 Gy) |
obs | n_fractions | number of fractions (28) |
obs | dose_per_fx | dose per fraction (1.8 Gy) |
layers | raw_counts | original featureCounts integers |
layers | cpm | counts-per-million normalized |
layers | log_cpm | log1p(cpm) — the matrix RSI ranks within each sample |
Computing the radiosensitivity biomarkers
Computing RSI
This is the most subtle step, so it’s worth being precise about the ranking. Following Scott 2017 and the reference implementation, RSI is computed in three steps per sample:
- Order all genes by log-CPM within the sample. This just gives us a within-sample ordering to compare the signature genes against each other — this intermediate position is not the rank that enters the formula.
- Extract the 10 RSI genes and re-rank them among themselves into relative ranks 1–10, where the highest-expressed RSI gene gets rank 10 and the lowest gets rank 1 (exactly as Scott et al. define it).
- RSI = weighted sum of those relative ranks, clipped to $[0, 1]$.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
missing = [g for g in RSI_GENES if g not in adata.var_names]
present = [g for g in RSI_GENES if g in adata.var_names]
if missing:
print(f" WARNING: RSI genes absent from data: {missing}")
log_cpm = adata.layers["log_cpm"]
var_names = np.array(adata.var_names)
rsi_scores = []
for i in range(adata.n_obs):
sample_expr = log_cpm[i, :]
# Intermediate within-sample ordering position. We assign position 1 to the
# highest-expressed gene purely as a sorting key; this is NOT the rank that
# enters RSI (that is computed in the re-ranking step below).
global_order = np.argsort(sample_expr)[::-1]
global_rank_pos = np.empty(len(sample_expr), dtype=float)
global_rank_pos[global_order] = np.arange(1, len(sample_expr) + 1)
# Ordering position of each of the 10 RSI genes
gene_positions = {g: global_rank_pos[np.where(var_names == g)[0][0]] for g in present}
# Re-rank the RSI genes AMONG THEMSELVES (the relative rank from scott 2017). sorted_genes is ordered from highest
# to lowest expression (smallest ordering position first), so the highest-
# expressed gene (r=0) gets relative rank n_present (=10), and the lowest
# (r=n_present-1) gets relative rank 1 -- i.e. highest expression -> rank 10
sorted_genes = sorted(gene_positions, key=lambda g: gene_positions[g])
n_present = len(sorted_genes)
relative_ranks = {g: n_present - r for r, g in enumerate(sorted_genes)}
rsi = sum(RSI_COEFFS[g] * relative_ranks[g] for g in present)
rsi_scores.append(float(np.clip(rsi, 0, 1)))
adata.obs["RSI"] = rsi_scores
On GSE190826 this yields RSI in [0.111, 0.904] with a median of 0.511, wide spread, confirming that radiosensitivity is far from uniform across these tumors.
RSI distribution across the cohort:
Computing GARD
With $n = 28$ fractions and $d = 1.8$ Gy, we derive each patient’s $\alpha$ at the calibrated $d_\alpha = 2$ Gy reference, then evaluate GARD at the delivered fractionation. Note the guard np.where(rsi <= 0, 1e-4, ...) — RSI of exactly 0 would send $\ln(\mathrm{RSI})$ to $-\infty$:
1
2
3
4
5
6
7
8
9
10
BETA, D_ALPHA = 0.05, 2.0
N_FRACTIONS, DOSE_PER_FX = 28, 1.8
rsi_arr = np.where(np.array(rsi_scores) <= 0, 1e-4, rsi_scores)
alpha = (np.log(rsi_arr) + BETA * D_ALPHA**2) / (-D_ALPHA)
gard = N_FRACTIONS * DOSE_PER_FX * (alpha + BETA * DOSE_PER_FX)
gard = np.clip(gard, 1, 100) # clamp extreme values (Scott 2017)
adata.obs["GARD"] = gard
adata.obs["alpha"] = alpha
This gives GARD in [2.04, 54.90] with a median of 16.44. Because radiosensitive (low-RSI) tumors have a larger $\alpha$, they land at the high end of the GARD scale at this fixed dose — the inverse relationship is exactly what we want.
Survival analysis
Dichotomizing GARD
To use GARD as a categorical predictor we split the cohort into High and Low GARD groups, with two cutpoint strategies. The median split is the simplest baseline:
1
2
3
# Median split
gard_median = float(np.median(gard))
adata.obs["GARD_cat_median"] = np.where(gard >= gard_median, "High", "Low")
Maxstat scans candidate cutpoints and picks the one that maximizes the log-rank $\chi^2$ between the two groups, BH-correcting across the scan. We restrict the search to the central percentiles of GARD (here the 33rd–75th) so that neither group can collapse to a small chance-separable extreme, a known source of inflated log-rank statistics
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
from lifelines.statistics import logrank_test
from statsmodels.stats.multitest import multipletests
def maxstat_2g(gard_vals, time_vals, event_vals, pct_window=(33, 75)):
lo, hi = np.percentile(gard_vals, pct_window)
candidates = np.unique(gard_vals[(gard_vals >= lo) & (gard_vals <= hi)])
chi2_vals, pvals = [], []
for cut in candidates:
g_hi = gard_vals >= cut
r = logrank_test(time_vals[g_hi], time_vals[~g_hi],
event_observed_A=event_vals[g_hi],
event_observed_B=event_vals[~g_hi])
chi2_vals.append(r.test_statistic); pvals.append(r.p_value)
chi2_arr = np.array(chi2_vals)
_, bh_pvals, _, _ = multipletests(pvals, method="fdr_bh")
best_idx = int(np.argmax(chi2_arr))
return candidates[best_idx], chi2_arr, candidates, bh_pvals[best_idx]
obs_s = adata.obs[["dfs_months", "dfs_event", "GARD"]].dropna()
obs_s = obs_s[obs_s["dfs_months"] > 0]
maxstat_cut, chi2_arr, cut_arr, maxstat_bh_p = maxstat_2g(
obs_s["GARD"].values, obs_s["dfs_months"].values, obs_s["dfs_event"].values)
adata.obs["GARD_cat_maxstat"] = np.where(gard >= maxstat_cut, "High", "Low")
GARD distribution (median and maxstat cutpoints overlaid):
Two things are worth making explicit about what the scan actually runs on. First, maxstat needs survival times, so it operates on the patients with DFS data (obs_s), not the full 105. The remaining patients without survival data still get a GARD_cat_maxstat label from the resulting cutpoint, but they don’t influence where the cutpoint is placed. Second, the 33rd–75th percentile window is computed on those DFS patients’ GARD values, which here spans [9.86, 19.56] Gy . So the search is deliberately confined to the central part of the survival cohort’s GARD distribution, never the tails, avoiding unbalanced groups on either GARD groups.
On this cohort the median cut is 16.44 and the maxstat cut is 18.93 Gy (sitting at roughly the 60th percentile of the full GARD distribution; BH-p ≈ 0.26). The scan looks like this:
The maxstat threshold lands around the 60th percentile of the GARD distribution. This is around the same upper-middle region as the upper-quartile (75th percentile) GARD cutpoint that Scott et al. used to separate high- from low-GARD patients in the original GARD paper
. Other studies have also used the 60th percentile as a cutoff between high- and low-GARD patients.
The maxstat cutpoint is chosen because it maximizes separation, so its raw p-value is optimistic — the BH correction across the scan is the bare minimum guard. In a real study you’d go further (e.g. a permutation-corrected p-value over the whole grid search) before trusting the cutpoint, to avoid being anti-conservative. With n=105 and a BH-p of ~0.33 here, treat the split as exploratory.
Cox modelling
We fit univariate and multivariate Cox proportional-hazards models with lifelines. Predictors: RSI (z-scored), GARD (z-scored), and the two binary GARD splits; the one clinical covariate available here is pathological response (pCR). We run each predictor on its own (the raw association) and again adjusted for pCR.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
from lifelines import CoxPHFitter
from scipy.stats import zscore
# Build the modelling table: z-score the continuous predictors, binarize the
# categorical GARD splits, and encode pCR as the one clinical covariate we have.
obs_cox = adata.obs[adata.obs[TIME_COL] > 0].dropna(subset=[TIME_COL, EVENT_COL]).copy()
obs_cox["RSI_z"] = zscore(obs_cox["RSI"], nan_policy="omit")
obs_cox["GARD_z"] = zscore(obs_cox["GARD"], nan_policy="omit")
obs_cox["GARD_cat_median_bin"] = (obs_cox["GARD_cat_median"] == "High").astype(int)
obs_cox["GARD_cat_maxstat_bin"] = (obs_cox["GARD_cat_maxstat"] == "High").astype(int)
obs_cox["pcr_bin"] = (obs_cox["response"].str.strip().str.lower() == "pcr").astype(int)
def fit_cox(cols, label):
"""Fit a Cox model on `cols` (first column is the predictor of interest) and
return its hazard ratio, 95% CI, p-value, and concordance."""
sub = obs_cox[cols + [TIME_COL, EVENT_COL]]
cph = CoxPHFitter(penalizer=0.1)
cph.fit(sub, duration_col=TIME_COL, event_col=EVENT_COL)
row = cph.summary.loc[cols[0]]
return {
"model": label, "predictor": cols[0],
"HR": round(float(np.exp(row["coef"])), 3),
"HR_lower": round(float(np.exp(row["coef lower 95%"])), 3),
"HR_upper": round(float(np.exp(row["coef upper 95%"])), 3),
"p": round(float(row["p"]), 4),
"c_index": round(float(cph.concordance_index_), 3),
}
predictors = ["RSI_z", "GARD_z", "GARD_cat_median_bin", "GARD_cat_maxstat_bin"]
cox_results = []
for pred in predictors: # univariate (raw association)
cox_results.append(fit_cox([pred], f"Univariate: {pred}"))
for pred in predictors: # adjusted for pCR
cox_results.append(fit_cox([pred, "pcr_bin"], f"Multivariate: {pred}"))
cox_df = pd.DataFrame(cox_results)
The signal points the right way even though the cohort is underpowered for significance. High GARD is protective: the maxstat split gives a univariate HR of 0.51 (95% CI 0.25–1.07, p = 0.074) and 0.50 (p = 0.065) after adjusting for pCR — i.e. patients whose tumors reach a high biological dose trend toward better DFS. Continuous RSI trends the opposite way (HR per SD ≈ 1.28, p ≈ 0.13), consistent with “higher RSI = more resistant = worse outcome.”
These hazard ratios are not statistically significant, which is what one could expect from a 105-patient single-arm cohort. The point of the tutorial is the pipeline and the direction of effect, not a definitive clinical claim. In the validation literature, GARD’s prognostic value emerges clearly in larger and multi-arm cohorts
.
Kaplan–Meier curves
We plot DFS by the median and maxstat GARD splits, annotating the log-rank p between the two groups.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
from lifelines import KaplanMeierFitter
def plot_km_2group(group_col, title, outpath, colors):
"""Plot Kaplan-Meier DFS curves for the two groups in `group_col`, annotated
with the log-rank p-value between them."""
df = adata.obs[[group_col, TIME_COL, EVENT_COL]].dropna()
df = df[df[TIME_COL] > 0]
fig, ax = plt.subplots(figsize=(8, 5))
kmf = KaplanMeierFitter()
grp_a, grp_b = sorted(df[group_col].unique(), reverse=True) # High/pCR first
for grp in (grp_a, grp_b):
mask = df[group_col] == grp
kmf.fit(df.loc[mask, TIME_COL], df.loc[mask, EVENT_COL], label=grp)
kmf.plot_survival_function(ax=ax, color=colors[grp], ci_show=True)
lr = logrank_test(
df.loc[df[group_col] == grp_a, TIME_COL], df.loc[df[group_col] == grp_b, TIME_COL],
event_observed_A=df.loc[df[group_col] == grp_a, EVENT_COL],
event_observed_B=df.loc[df[group_col] == grp_b, EVENT_COL])
ax.text(0.05, 0.05, f"log-rank p = {lr.p_value:.4f}", transform=ax.transAxes, fontsize=10)
ax.set_xlabel("Time (months)"); ax.set_ylabel("DFS probability")
ax.set_title(title); ax.set_ylim(0, 1.05)
plt.tight_layout(); fig.savefig(outpath); plt.close()
GARD_COLORS = {"High": "#2ca02c", "Low": "#d62728"}
plot_km_2group("GARD_cat_median", f"DFS -- GARD median split (cut={gard_median:.1f})",
FIG_DIR / "km_dfs_gard_median.png", GARD_COLORS)
plot_km_2group("GARD_cat_maxstat", f"DFS -- GARD maxstat split (cut={maxstat_cut:.1f})",
FIG_DIR / "km_dfs_gard_maxstat.png", GARD_COLORS)

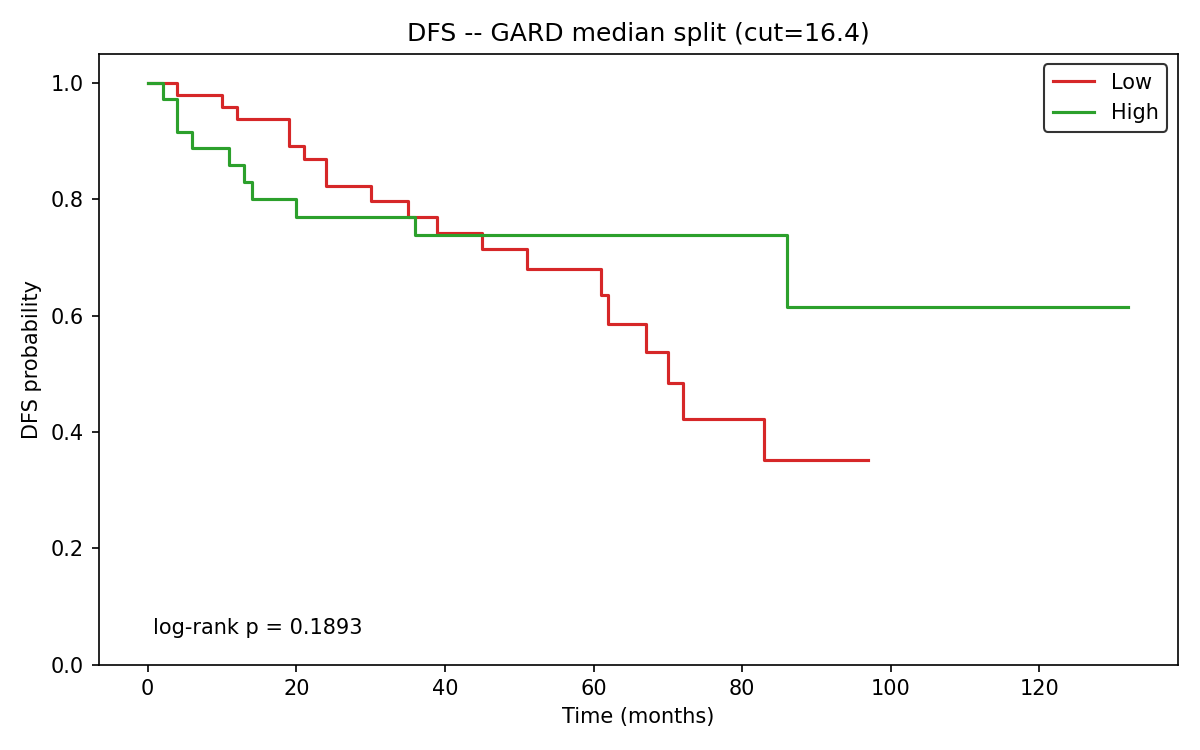

DFS by GARD median split:
DFS by GARD maxstat split — the High-GARD (radiosensitive) group separates toward better survival, mirroring the Cox trend (Low = 63; High = 42):
Personalizing the dose with RxRSI
Finally we invert GARD. We set the target $\mathrm{GARD}_T$ to the maxstat cutpoint (the GARD value associated with entering the better-outcome group) and compute, for each patient, the physical dose needed to reach it using the simple eq-4 form:
1
2
3
4
5
6
GARD_T = maxstat_cut # 18.93 on this cohort
# RxRSI = GARD_T / (alpha + beta * d) [Scott 2021, eq 4]
denom = alpha + BETA * DOSE_PER_FX
rxrsi = np.where(denom > 0, GARD_T / denom, np.inf)
adata.obs["RxRSI"] = rxrsi
We then classify each patient against a typical colorectal cancer (CC) SOC window (45–54 Gy, delivered dose 50.4 Gy) and apply the Scott 2021 ±10 % rule
1
2
3
4
5
6
7
8
9
10
11
12
SOC_LOW, SOC_HIGH = 45.0, 54.0
rxrsi_group = np.where(
rxrsi <= SOC_LOW, "Radiosensitive",
np.where(rxrsi <= SOC_HIGH, "Intermediate", "Radioresistant"))
adata.obs["RxRSI_group"] = rxrsi_group
delivered = adata.obs["total_dose"].values
tol = 0.10
adata.obs["dose_match"] = np.where(
rxrsi > delivered * (1 + tol), "Under-dosed",
np.where(rxrsi < delivered * (1 - tol), "Over-dosed", "Adequate"))
On GSE190826 (target GARD = 18.93), the median RxRSI is 58.0 Gy and the cohort splits into 35 radiosensitive, 13 intermediate, and 57 radioresistant tumors, i.e. relative to the 50.4 Gy actually delivered, 35 were effectively over-dosed, 14 adequate, and 56 under-dosed. This is the same “uniform dose fits no one” picture that motivated the whole framework.
The required dose as a function of RSI. Note the exponential blow-up for radioresistant (high-RSI) tumors, which is why a single dose can’t suit everyone. The solid curve is the delivered 1.8 Gy/fx fractionation; markers are individual patients colored by group, with the SOC band shaded:
Per-patient RxRSI waterfall, ranked ascending, against the SOC band:
Read RxRSI as a ranking, not a prescription here. Because this cohort is at 1.8 Gy/fraction (outside the 2 Gy calibration), and because $\beta$ is fixed at a population value, the radioresistant tail produces RxRSI values well above 100 Gy that are not physically deliverable to a pelvic target. As Scott and colleagues note for the radioresistant range, such values are best read as a flag that conventional radiotherapy is unlikely to reach a curative biological dose, pointing toward intensified systemic therapy or alternative modalities, rather than as literal dose recommendations (such as their lung cohort reaching values > than 120 Gy)
.
Conclusion and next steps
Here you can have a general idea of the the full RSI → GARD → RxRSI pipeline on the public GSE190826 rectal cancer cohort (50.4 Gy / 28 fx = 1.8 Gy/fx). The key steps were:
- Fetch & filter — parse
featureCountsfrom the GEO RAW tar, keep pre-CRT biopsies, build anAnnData. - Normalize — CPM +
log1p; ranks make absolute scale irrelevant. - RSI — rank all genes per sample, re-rank the 10 signature genes, weighted sum. Low RSI = radiosensitive.
- GARD — derive per-patient $\alpha$ at the 2 Gy reference, evaluate the LQ effect at the delivered 1.8 Gy, clamp to 100.
- Survival — dichotomize GARD (median split + maxstat), fit Cox models, plot Kaplan–Meier. High GARD trended protective for DFS.
- RxRSI — invert to the dose needed to reach the target GARD; classify patients as over-/adequately-/under-dosed relative to the delivered 50.4 Gy.
Limitations. GSE190826 is a single-arm cohort (everyone received 50.4 Gy), so we can show GARD is associated with outcome but not that it predicts differential benefit from dose escalation (i.e. radiotherapy arm), that needs a multi-arm dose contrast. The cohort is also relatively small (n=105), so the hazard ratios are directional rather than significant. And, as emphasized throughout, 1.8 Gy/fraction is just outside the 2 Gy calibration of RSI/GARD, so the absolute RxRSI doses are ordinal indicators, not prescriptions
Let me know if you have any questions or suggestions! Feedback is always welcome :)
Enjoy Reading This Article?
Here are some more articles you might like to read next:
